Network

  Your Plant equipment needs to be configured with a server address in order to display data in Smart M. You can perform distribution operations on the device through the APP. The specific steps are as follows:

Date logger Configuration

① Open Smart M.

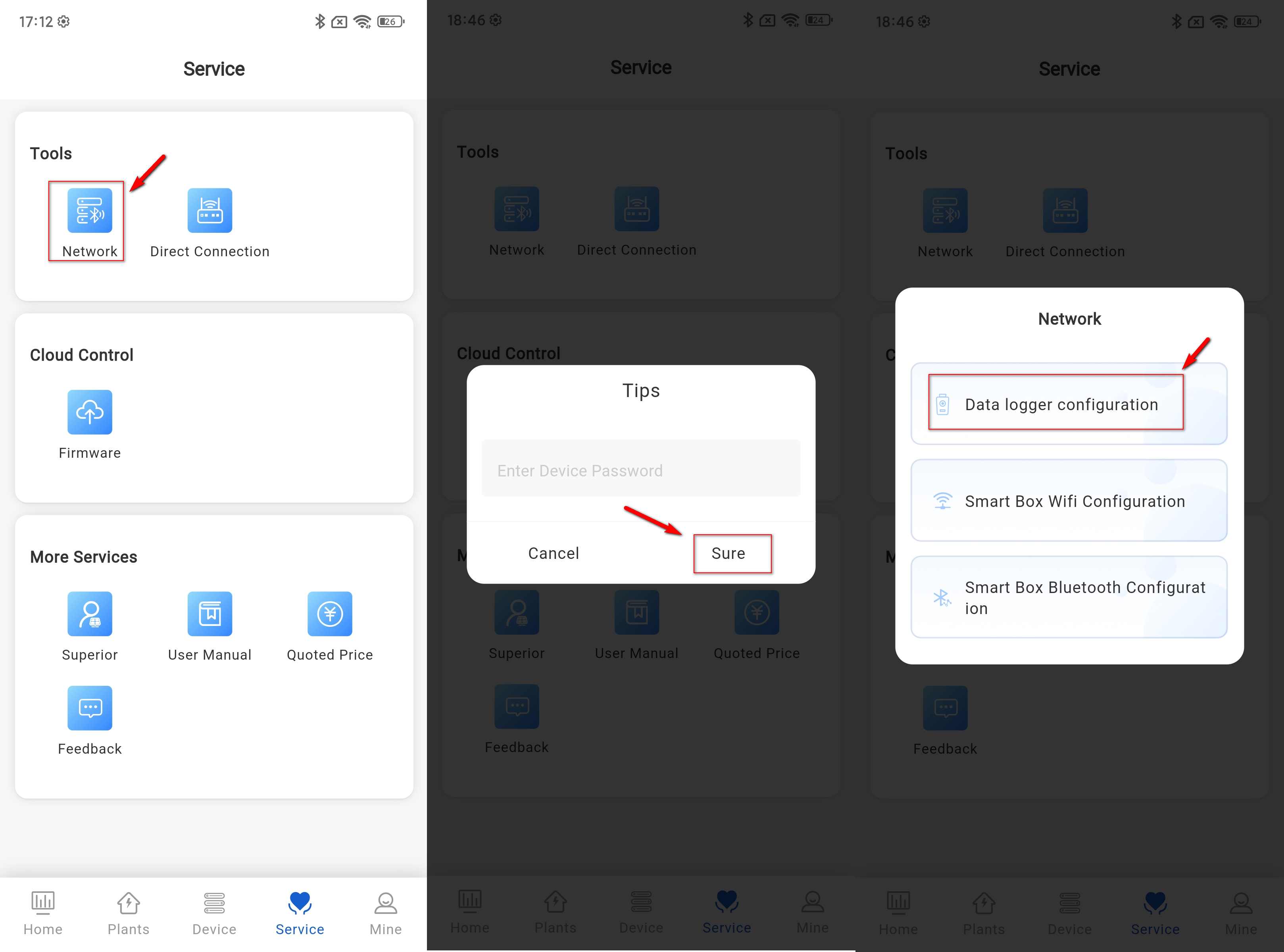

② Click on Service - Device Distribution Network in sequence.

③ Enter the device password in the pop-up prompt box.

④ Select the [Data Stick Configuration] option in the pop-up distribution network prompt box to perform distribution network operations for your collector.

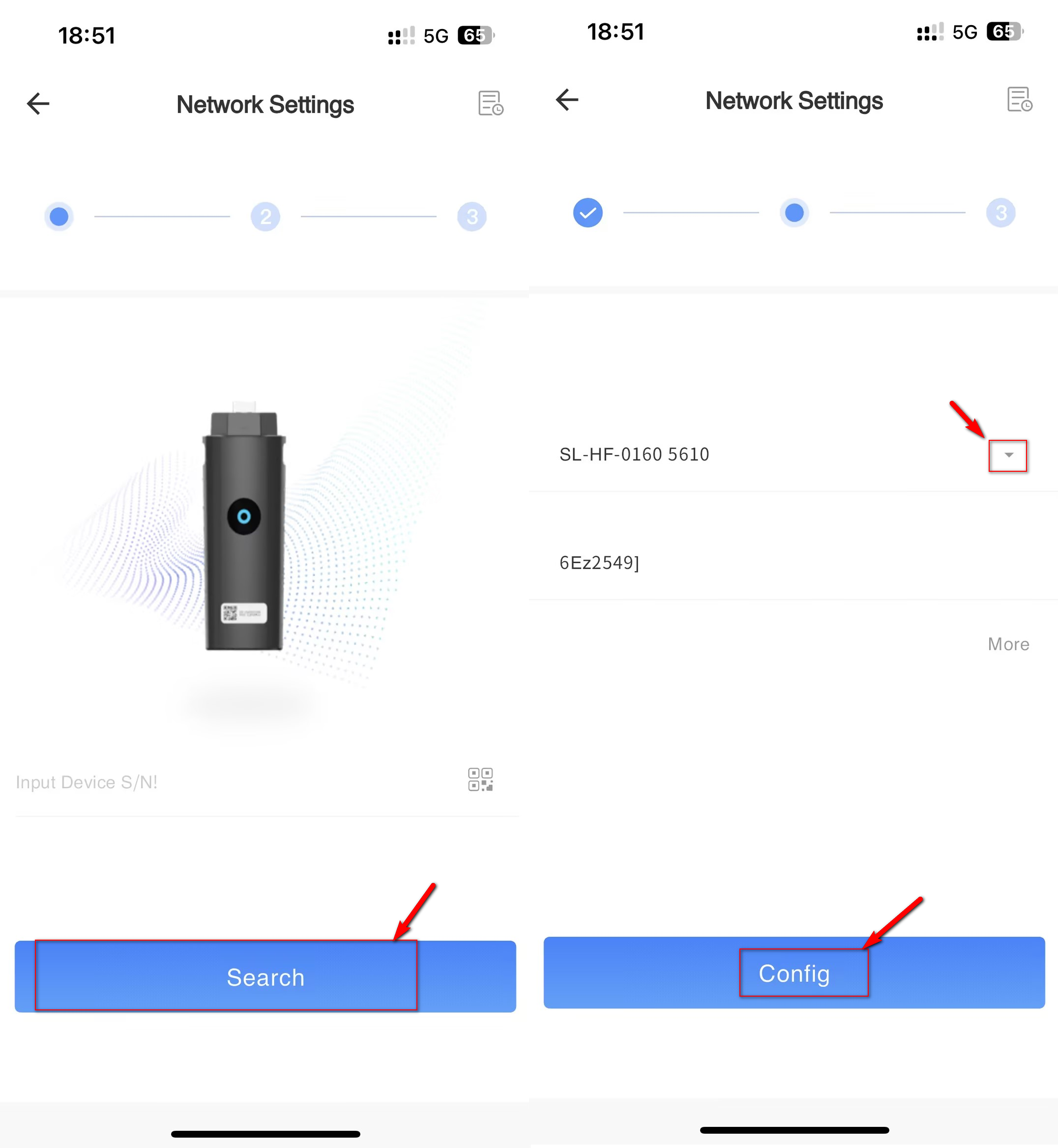

⑤ Click on the [Search Devices] button at the bottom, find and select the device you want to network with.

⑥ Select the WiFi you want to connect to and enter the WiFi password.

⑦ Click the [Set Now] button.

Smart boxWiFi Configuration

① Open Smart M.

② Click on Service - Device Distribution Network in sequence.

③ Enter the device password in the pop-up prompt box.

④ Select the [Smart Box Wifi Configuration] option in the pop-up network configuration prompt box to perform network configuration operations for your Smart Box.

⑤ Click the [Go to Settings] button on the pop-up page to connect your phone to the WiFi hotspot on the Smart Box.

⑥ Return to the app page, select the WiFi you want to connect to, and enter the WiFi password.

⑦ Click the [Set Now] button.

Smart Box Bluetooth Configuration

① Open Smart M.

② Click on Service - Device Distribution Network in sequence.

③ Enter the device password in the pop-up prompt box.

④ Select the [Smart Box Bluetooth Configuration] option in the pop-up distribution prompt box to perform distribution operations for your Smart Box.

⑤ Click the [Search] button at the bottom, find and select the device you want to install the network on.

⑥ Select the WiFi you want to connect to and enter the WiFi password.

⑦ Click the [Set Now] button.
