Device details

  This system supports viewing real-time information data of devices within the Plant equipment management system; Support viewing fault details and identifying the cause of the fault within the device details; Support viewing statistical data of the device.

Real-time

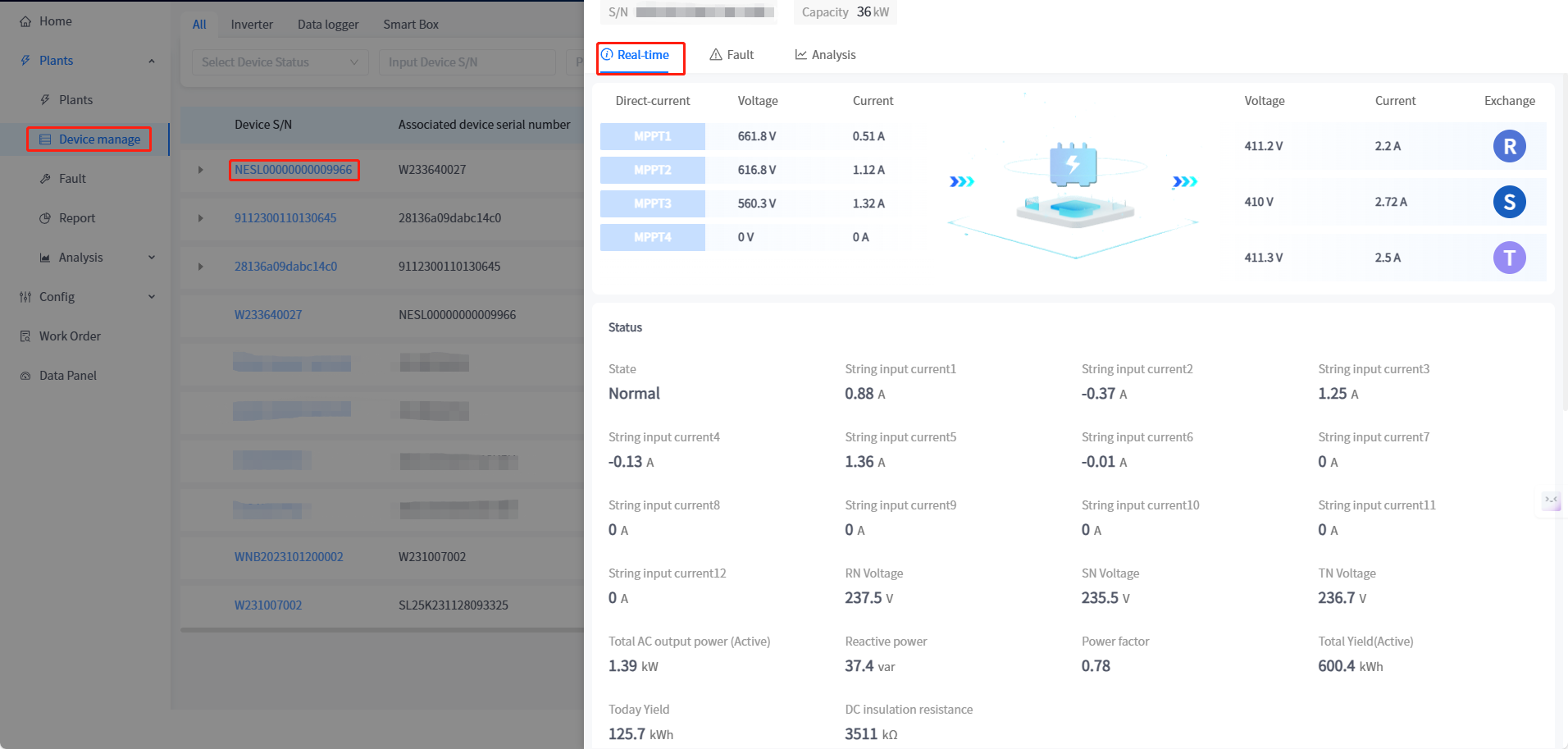

  The system displays the detailed working data of the Device in the page of Device infor - real-time information, including: Device status, power generation data, network data, temperature, control and version details (updated once every five minutes).

Real time refresh

  In order to facilitate your real-time access to the working data of the inverter, the system has added a refresh button at the bottom right corner of the real-time information page. By clicking this button, the system can obtain the working data of the inverter at the current time point and display it to you.

Real time information export

  In order to facilitate your viewing of all the working data of the inverter, the system has added an export button in the lower right corner of the real-time information. You can click this button, select the real-time information time period you want to view, and export all the real-time information of the inverter within that time period as an Excel spreadsheet for viewing. (Support you to export real-time information data for no more than 7 days)

Fault

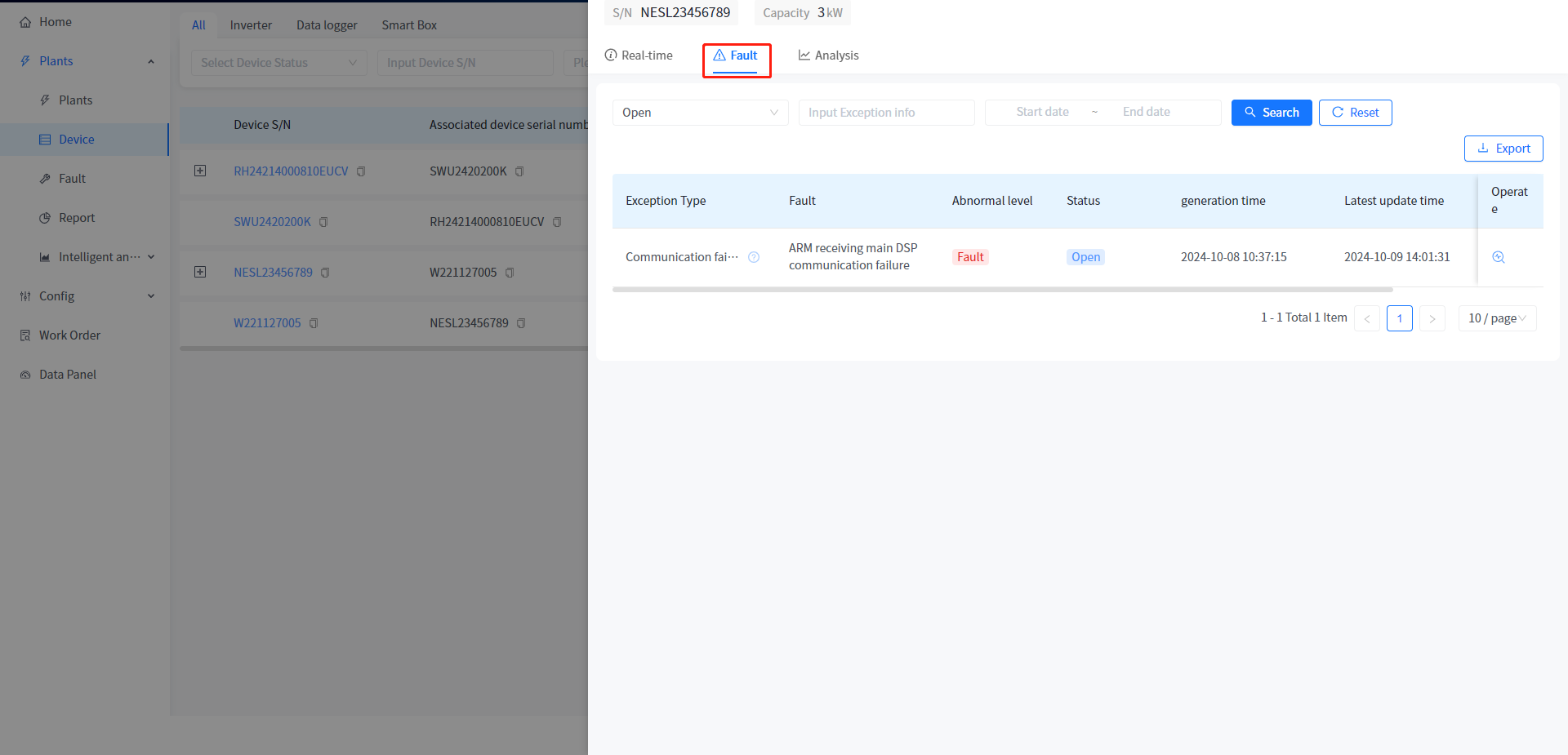

  This system displays all fault data of the device on the device information details fault information page. Click the [Details] button of a certain piece of data to view the detailed information of the fault/alarm; The button next to the mouse fault type can view the troubleshooting plan for fault alarms.

Get device abnormality

  The system has added a [Get Device Exception] button on the exception information page. You can click this button to read all the fault information that has occurred in the inverter in real time, making it convenient for you to understand the historical working status of the inverter and troubleshoot the frequency of faults.

Export of fault information

  The system has added an [Export] button on the abnormal information page. You can click this button to export all the fault data queried, making it convenient for you to count and view the occurrence of equipment faults.

Analysis

  The system displays the current time real-time power, historical power, AC analysis, DC current comparison, DC voltage comparison, DC current and voltage comparison, and historical power generation of the Device in the device information-details page in the form of line charts.

Export statistical analysis data

  The system has added an [icon] button on the statistical analysis page. You can click this button to export the statistical data of the selected time dimension and statistical dimension, and export the file in numerical format.
