Smart Box associated device management

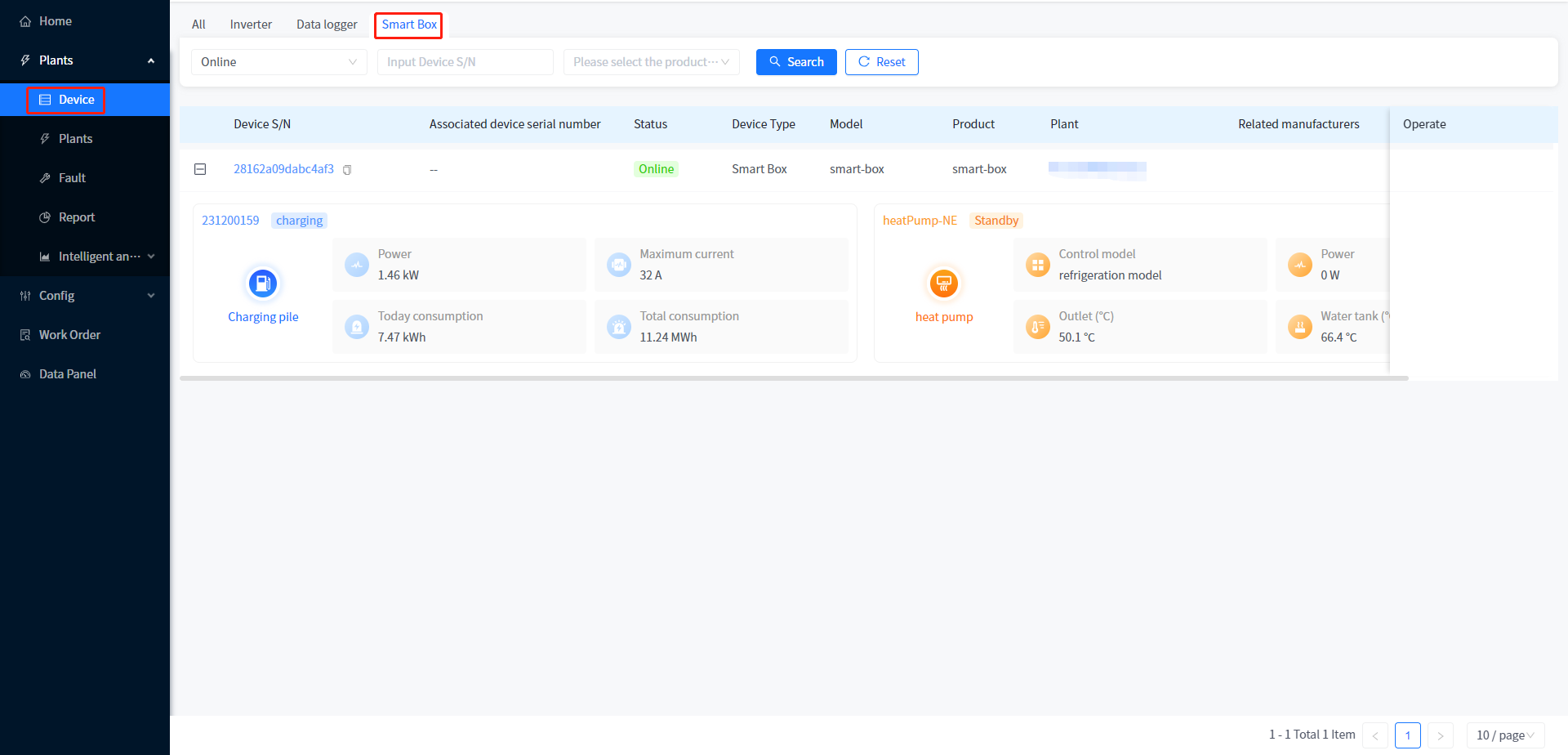

Smart Box

  Distributors can view work data and configure parameters for Smart Box devices, as well as view data and configure parameters for associated heat pumps and charging stations under Smart Box.

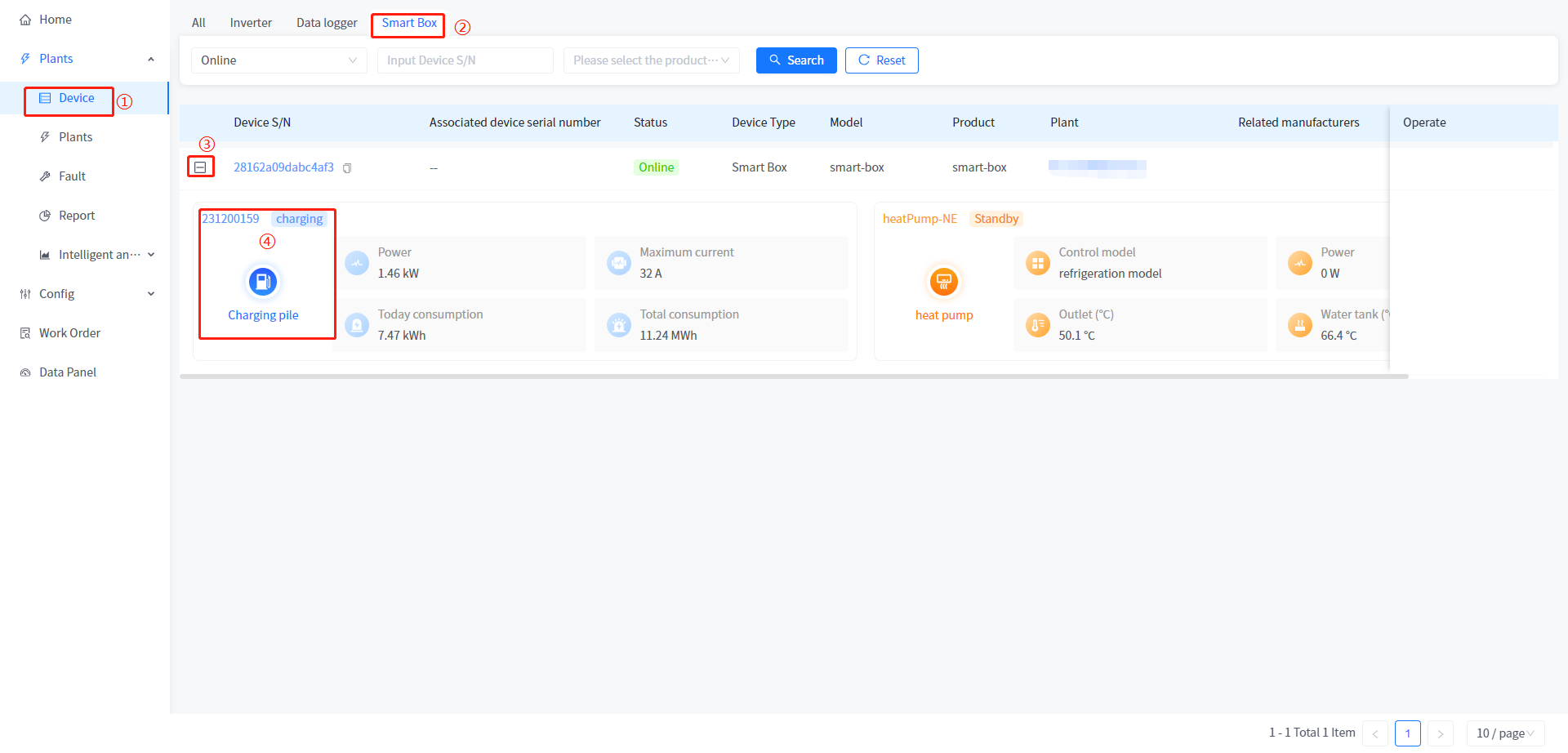

Charging pile summary and details view

① Click Plants - Device Management to enter the device list page.

② Click the Smart Box Tab at the top to go to the Smart Box device list page.

③ Click the expand button on the left.

④ Click on the device serial number in the charging station data to directly view the detailed information of the device.

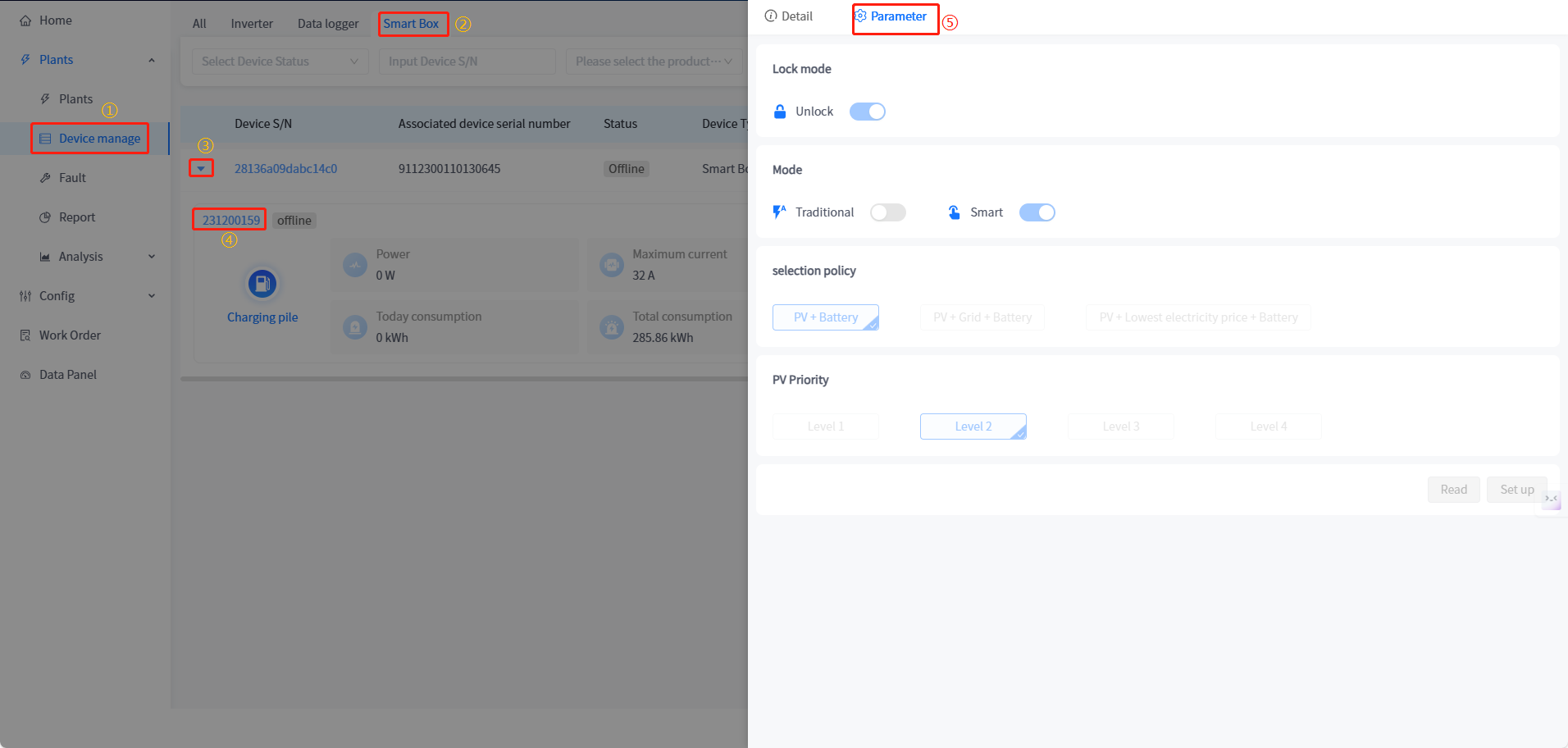

Charging pile parameter configuration

① Click Plants - Device Management to enter the device list page.

② Click the Smart Box Tab at the top to go to the Smart Box device list page.

③ Click the expand button on the left.

④ Click the device serial number in the charging pile data to enter the charging pile device details page.

⑤ Click the [Configuration] button at the top of the pop-up page to set parameters.

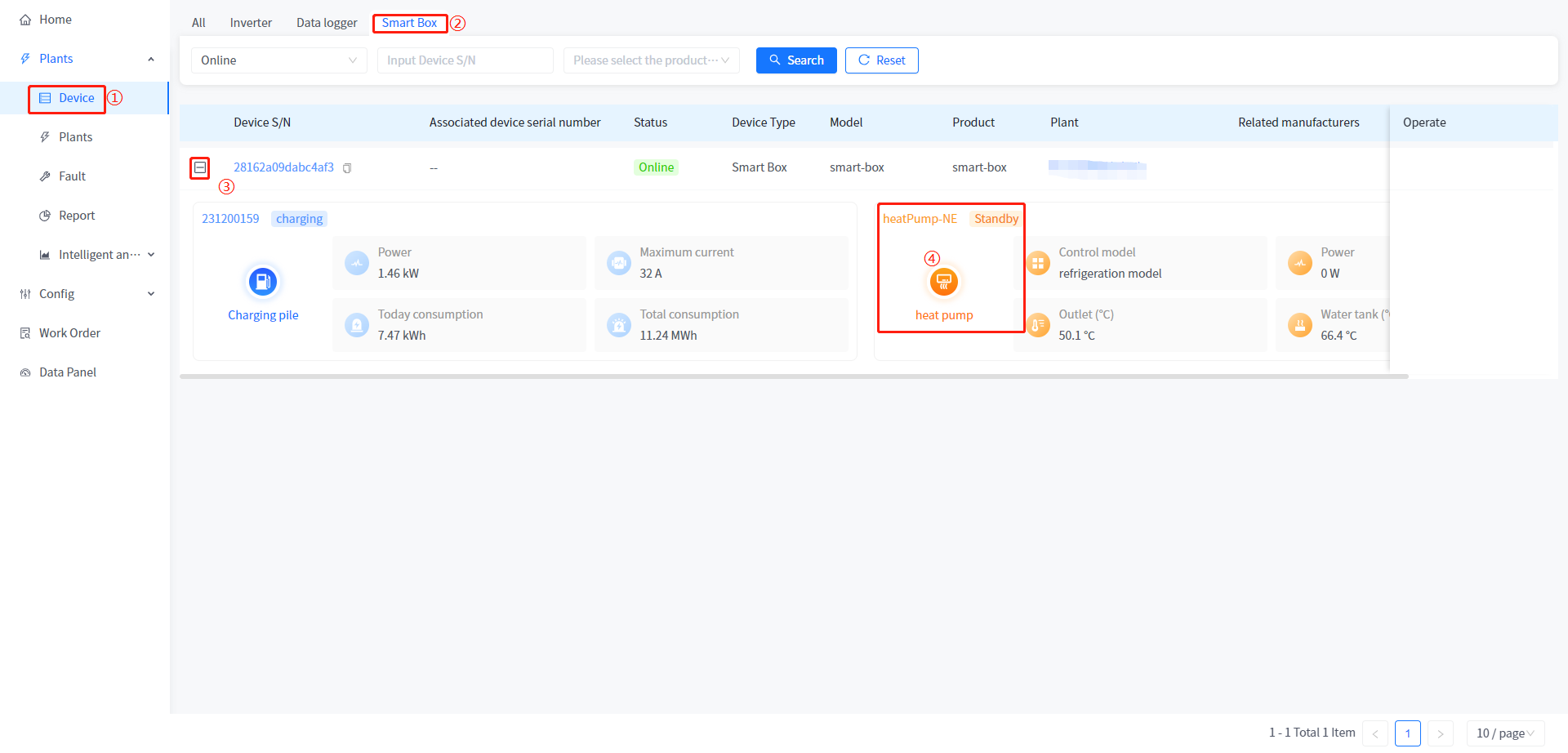

Heat pump summary and details view

① Click Plants - Device Management to enter the device list page.

② Click the Smart Box Tab at the top to go to the Smart Box device list page.

③ Click the expand button on the left.

④ Click on the device serial number in the heat pump pile data to directly view the detailed information of the device.

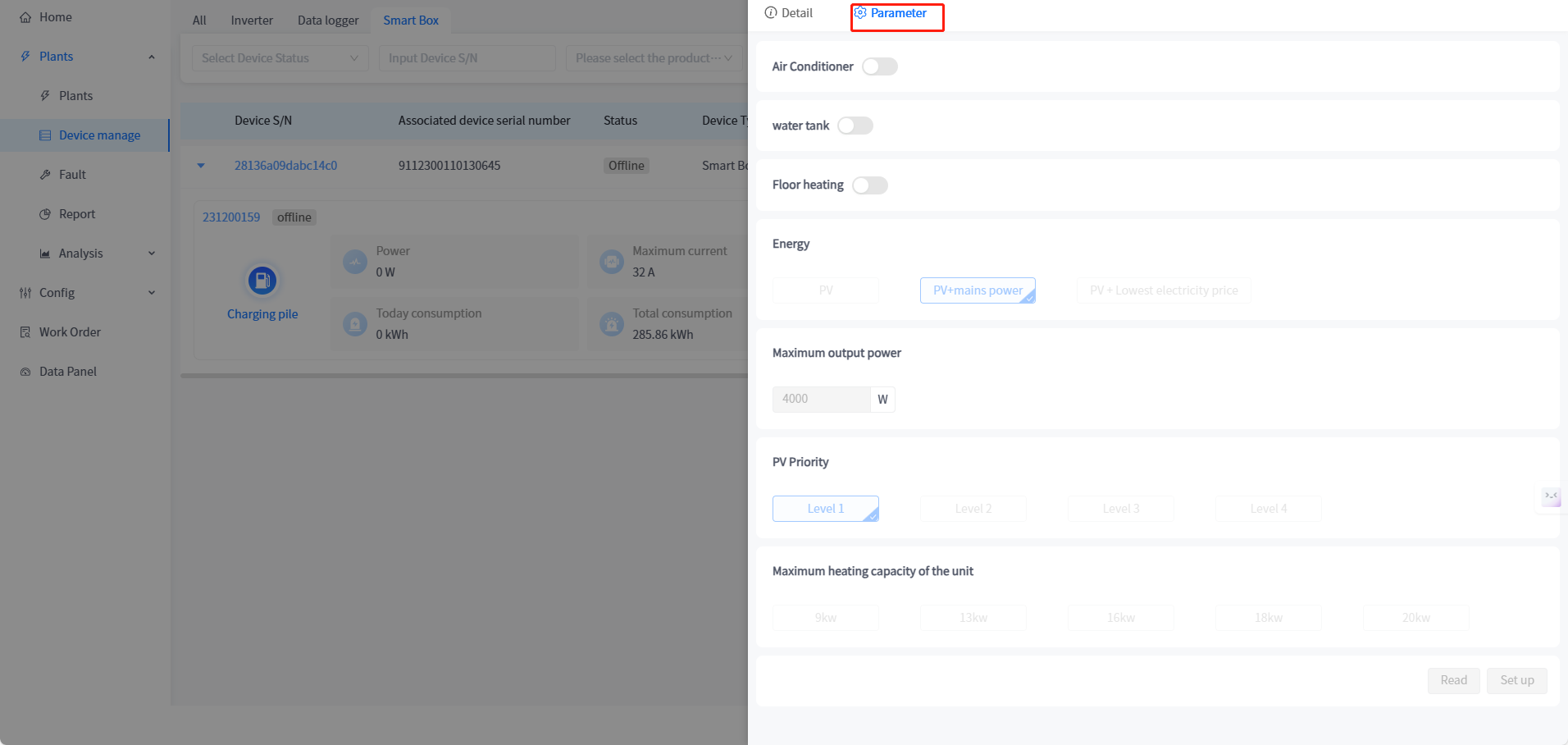

Heat pump parameter configuration

① Click Plants - Device Management to enter the device list page.

② Click the Smart Box Tab at the top to go to the Smart Box device list page.

③ Click the expand button on the left.

④ Click the device serial number in the charging pile data to enter the heat pump device details page.

⑤ Click the [Configuration] button at the top of the pop-up page to set parameters.
